Audio Cable
7N-DA3100 MEXCEL
A standard type
Audio Cable
7N-DA3100 MEXCEL
SPECIFICATIONS
Spec description
| Center conductor | |
| HOT | 7N Cu MEXCEL solid core / φ0.8mm × 1 |
| COLD | – |
| External conductor (shield) | Silver coated copper braid Copper clad mylar tape |
| Extemal diameter | 9.5mm |
| Resistance | < 35.7mΩ/m |
| Impedance | <75 |

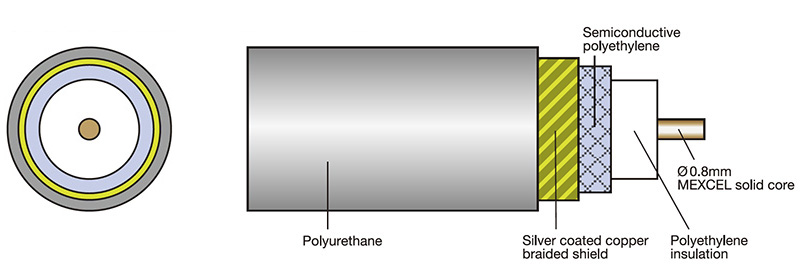

Composition
*Design and specification are subjet to change without notice.
