Power Cable

7N-PC7500

New generation of power cable

7N-PC7500
7N-PC7500

Power Cable

7N-PC7500

SPECIFICATIONS

This model has been discontinued.

Read the features

Spec description

Cable Type Screened 3 core cable
Conductor
HOT Stressfree D.U.C.C. 7N Cu / 0.26φ x 100
COLD Stressfree D.U.C.C. 7N Cu / 0.26φ x 100
GROUND Super-anneal 4.5N Cu / 0.26φ x 100
Conductor jacket Polymer polyolefin
Insulation Polymeric polyolefin-hybrid (polyolefin + tungsten, amorphous and carbon powder)
Shield UEW (polyurethane enameled wire) 4N Cu braid
Cu laminated polyester tape
Outer Jacket UV polyurethane
External Diameter 16 mm
Resistance 2.6 m Ohms / m
Capacitance 12 pF / m
Maximum ampacity 50 Ampere
Connector Types IEC / Wall plug US
Connector Esoteric ultimate power plug / IEC connector with beryllium copper contact elements (silver + rhodium plating)
Standard Sales Units / Lengths 1.5m* x 1
* Custom lengths of this cable, made to order, can be manufactured at extra cost.

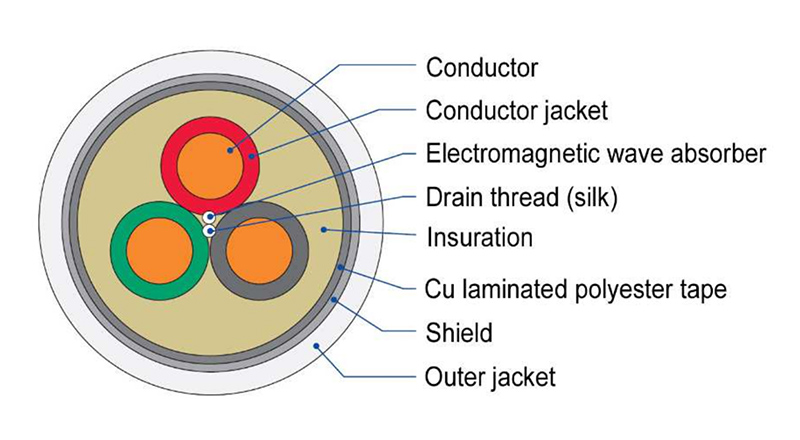

Composition

7N-PC7500



- Design and specifications are subject to change without notice.
