Press release

A new Master Clock Generator “G-01XD” will be released.

02-01-2024


TAMA, TOKYO, JAPAN, FEB 1, 2024 – Esoteric Company is proud to announce a new master clock generator, the G-01XD. First shipments will start in April 2024.




Product Name Model Name Estimated Delivery Date Sales Region
Master Clock Generator G-01XD April 2024 Worldwide



G-01XD



“Master Sound Discrete Clock” takes the musical expression of digital players one step further.
The G-01XD is a master clock generator equipped with Master Sound Discrete Clock, an OCXO* clock module developed in-house to enhance the musical expression of digital players. The G-01XD brings out the full music playback potential of the Esoteric K-01/N-01 series, as well as various digital players that can be connected to a 10 MHz external clock.
*OCXO = Oven Controlled Crystal Oscillator

Shown with the K-01XD 

Key Features

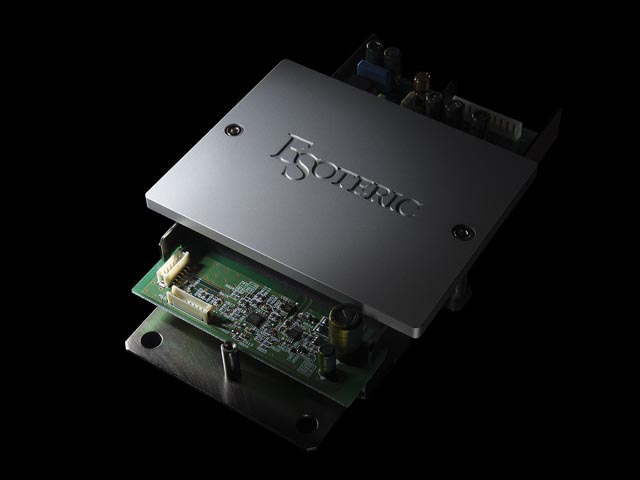

  • Master Sound Discrete Clock – Esoteric’s proprietary OCXO* module developed exclusively for music reproduction.
  • The G-01XD brings out the full music playback potential of the K-01/N-01 series, as well as various digital players equipped with a 10 MHz clock input.

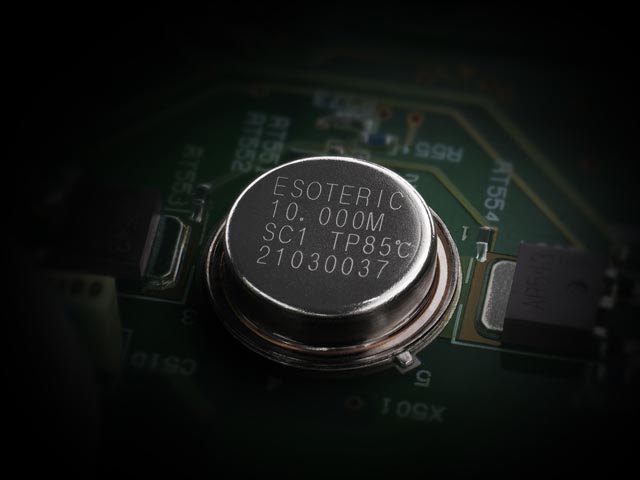

  • The Esoteric SC1, a large custom crystal oscillator originally developed for the Grandioso G1X.
  • Master Sound TC* – Esoteric’s proprietary temperature control program.
  • Multi-stage heater control with 128 steps to maintain a uniform oven temperature.
  • Four independent power supplies for the ultimate in musicality.
  • Esoteric-HCLD buffer circuit that can output a pure 10MHz sine wave with it’s powerful, precise, and wide range current transfer capability.
  • Four 10MHz sine wave clock outputs compatible with ‘Adaptive Zero Ground’ mode.
Key Specifications
  • Output frequency: 10MHz
  • Frequency precision: Within ±0.01ppm (when shipped new)
  • Connectors: BNC × 4
  • Output level: Sine wave 0.5 ±0.1Vrms/50Ω
  • Power: AC120V 60Hz, AC220-240V 50/60Hz
  • Power consumption: 15W (when stable)
  • Overall dimensions: (W×H×D, incl. protrusions): 445×131×360mm
  • Weight: 12.8kg
