Esoteric Launches the T-01 “Esoteric MagneDrive” Turntable

Press release

08-21-2026

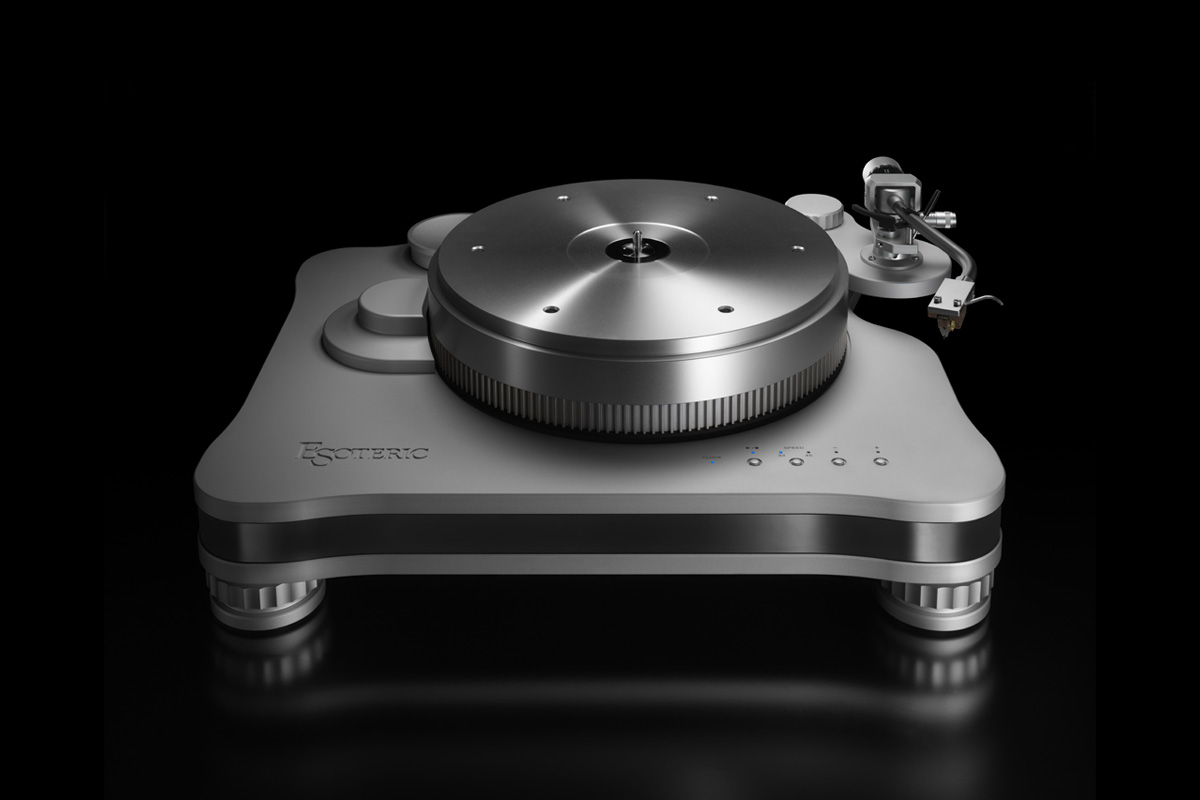

TAMA, TOKYO, JAPAN, AUGUST 21, 2026 – Esoteric is proud to launch the T-01 turntable, which features a patented “Esoteric MagneDrive” contactless drive system. The product will be available for international shipment in the end of September 2026.


Product Name	Model Name	Estimated Delivery Date	Sales Region	Specifications
Analog Turntable	T-01	End of September 2026	Worldwide	Tonearm included No cartridge included

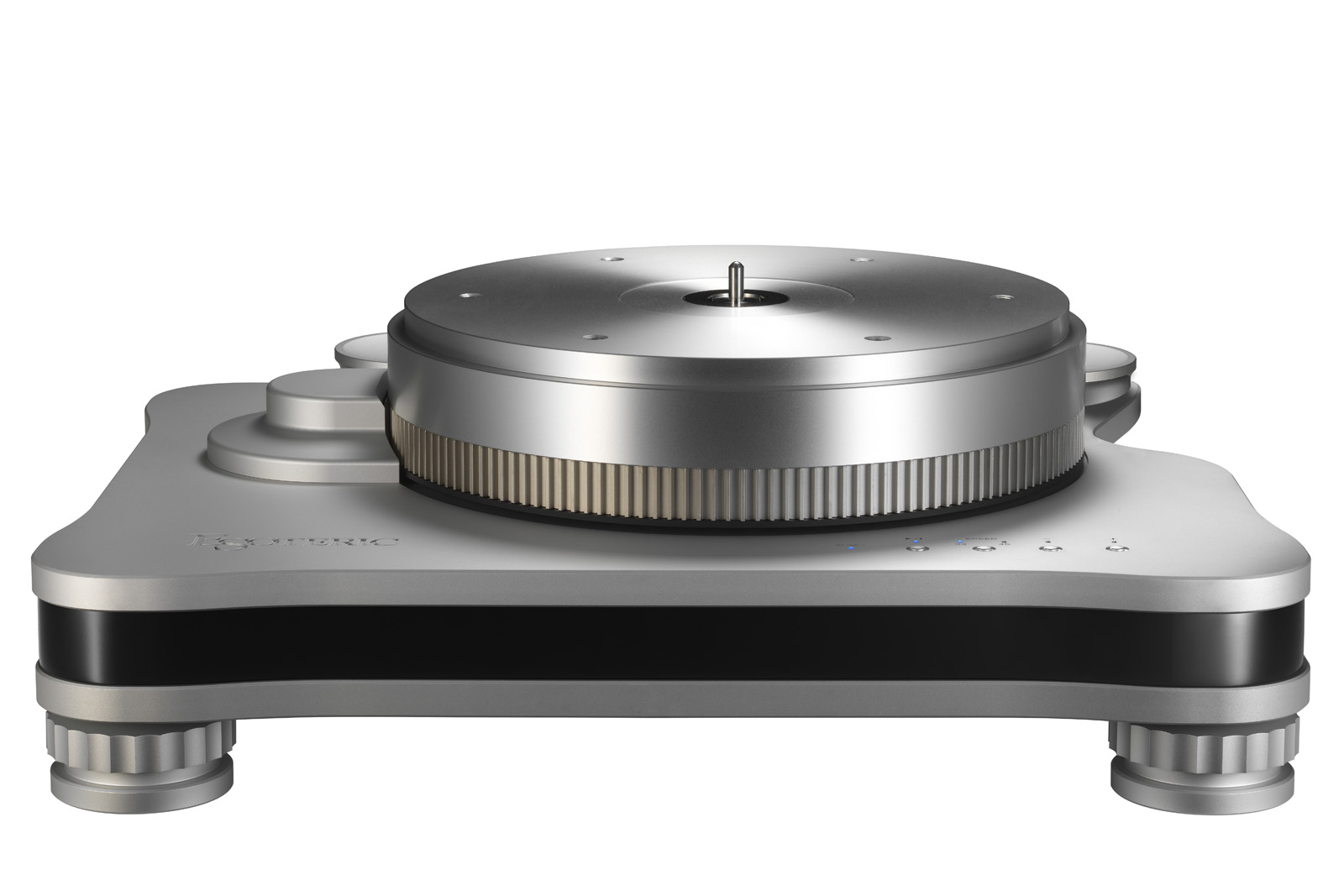

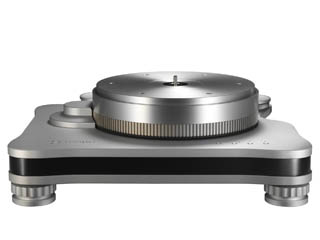

Analog Turntable (Armless model)	T-01 AL	End of September 2026	Worldwide	No tonearm and cartridge included

Silence. Precision. Motion.

First introduced in the groundbreaking Grandioso T1, the revolutionary patented (JP6501130) “Esoteric MagneDrive System” redefined the foundations of analog playback through its exclusive contact-free drive technology.
Now integrated into the T-01, it achieves extraordinary rotational silence, stability, and high-torque performance, revealing music with uncompromising precision, energy, and realism.
Four years after the debut of the Grandioso T1, the Esoteric Analog Revolution lives on.

Developed from the engineering philosophy established in the Grandioso T1, the T-01 incorporates key technologies inherited from Esoteric’s flagship analog platform, including 10MHz external clock synchronization, a sophisticated triple-layer aluminum and MDF cabinet construction, and a newly developed, silent MagneDrive motor system integrated into a more installation-friendly chassis architecture.
At the intersection of precision mechanical engineering and advanced electronic design, the T-01 is dedicated to reproducing the original master sound with breathtaking realism, musical energy, and emotional depth.

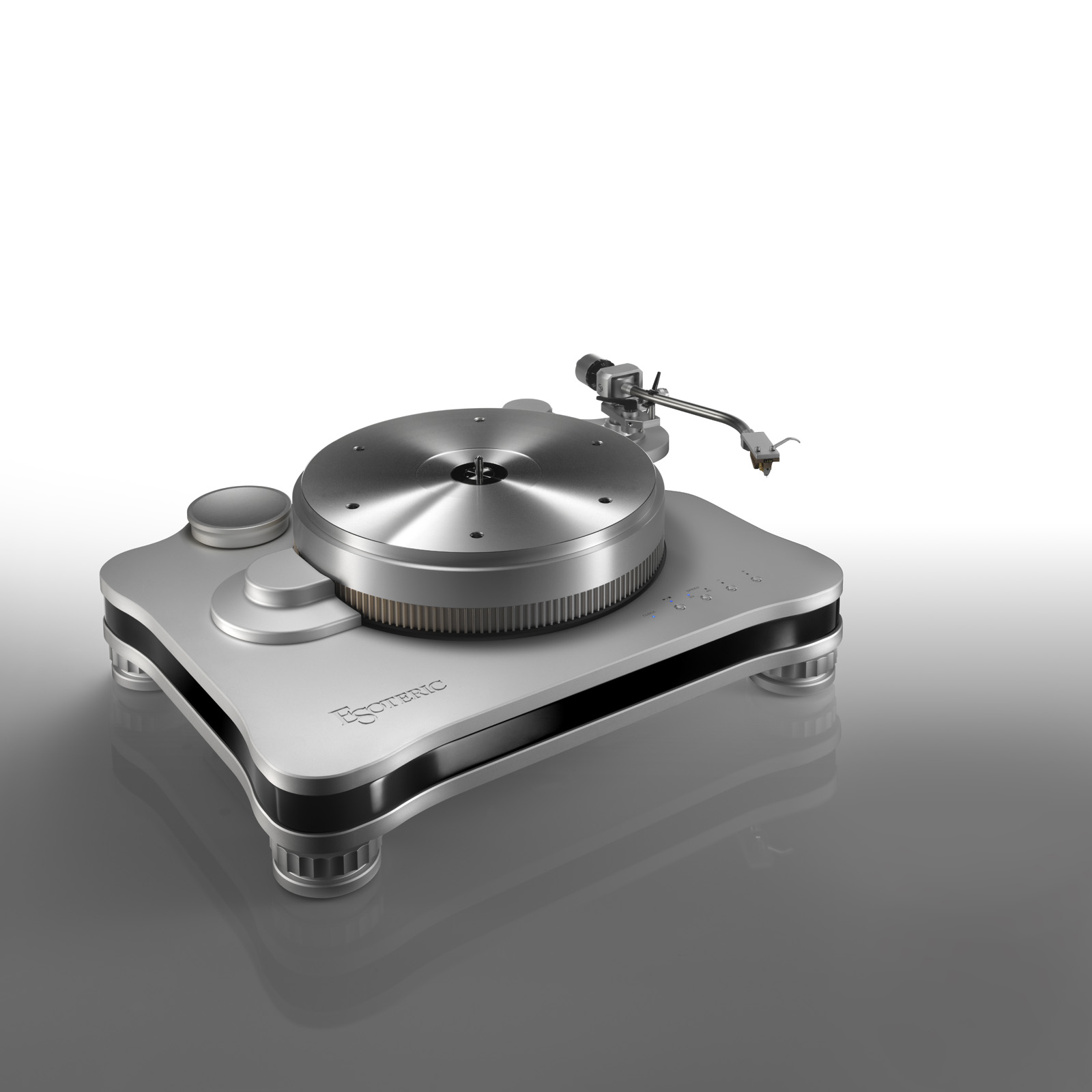

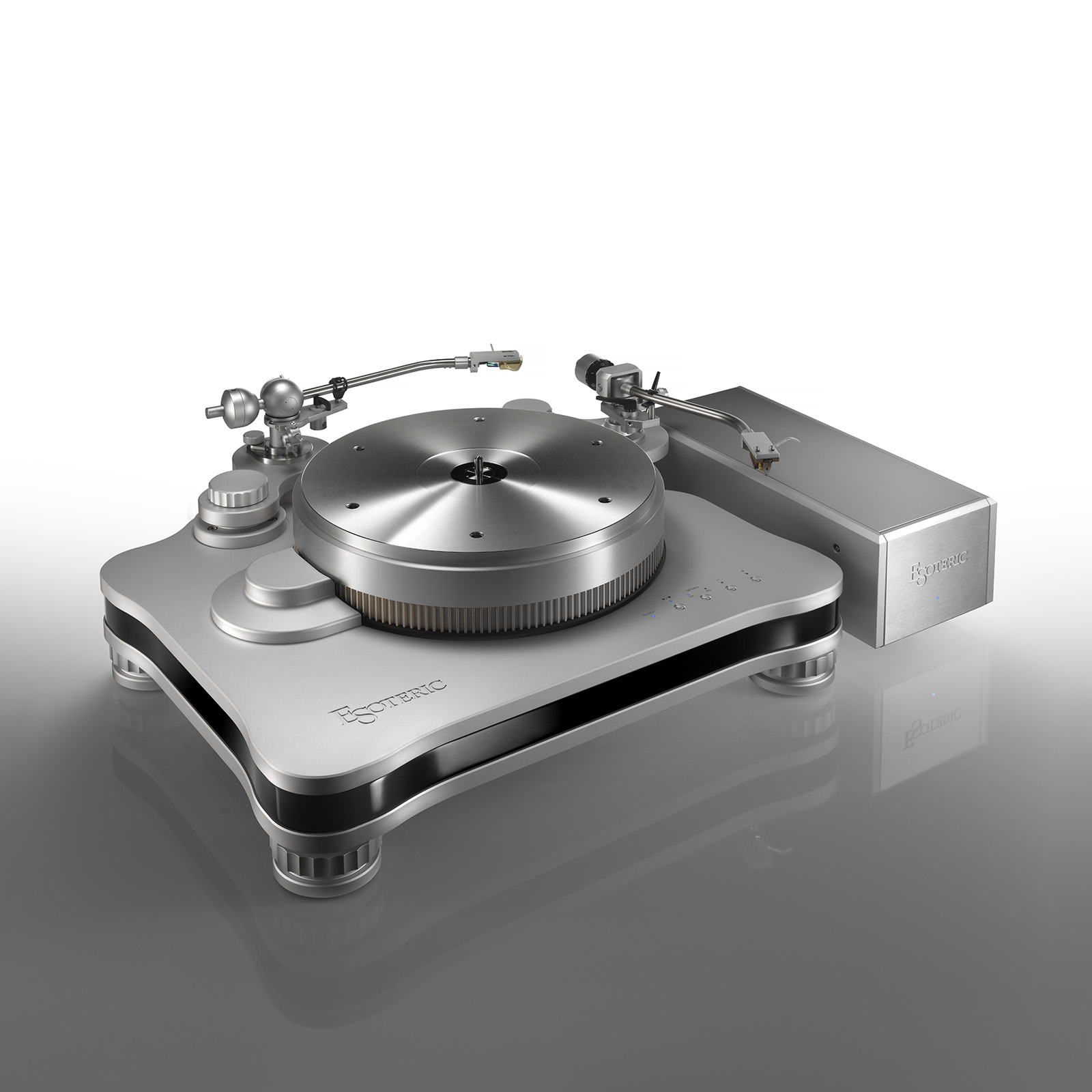

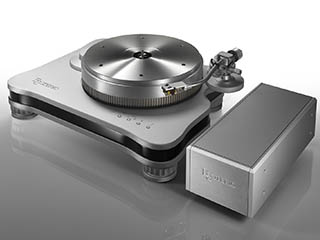

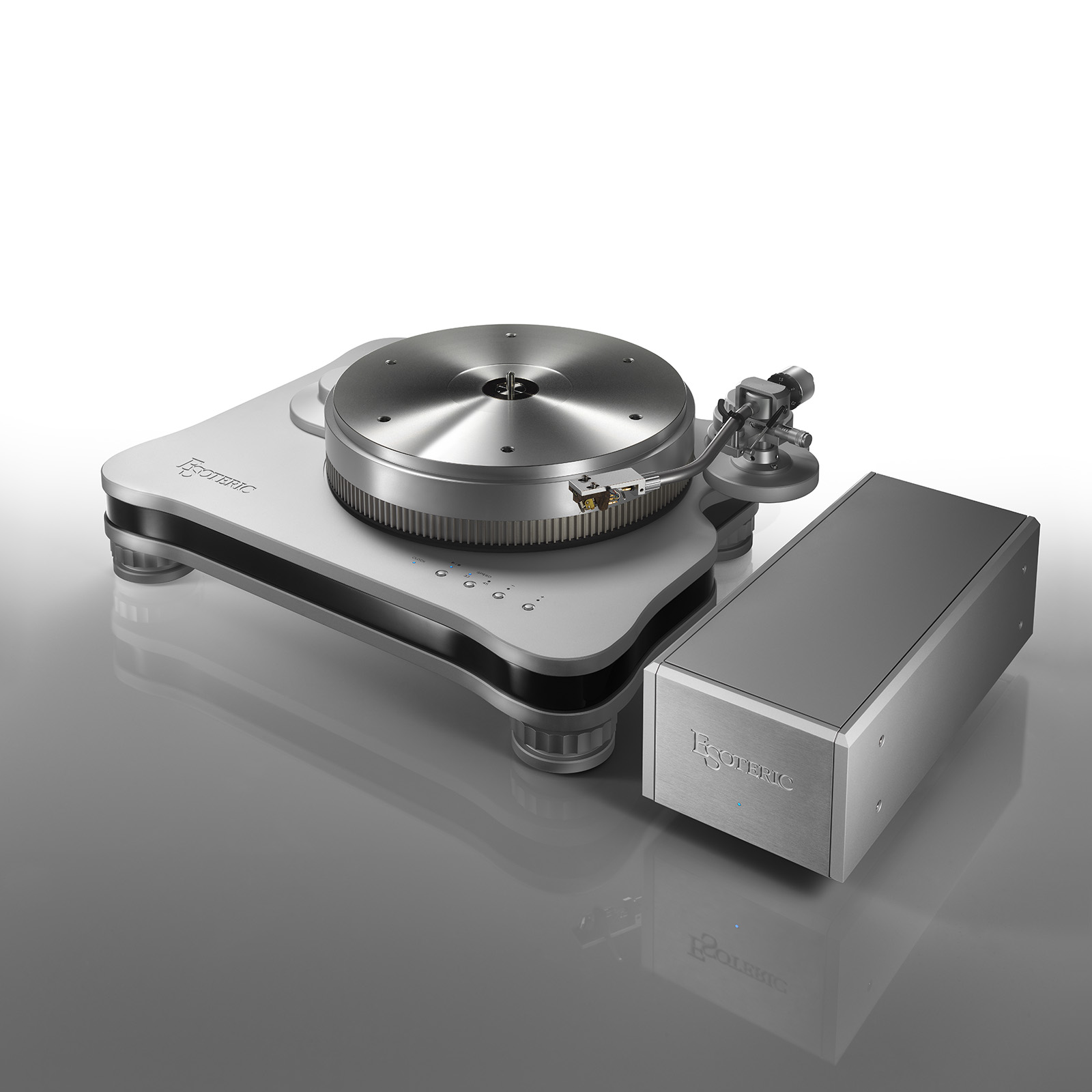

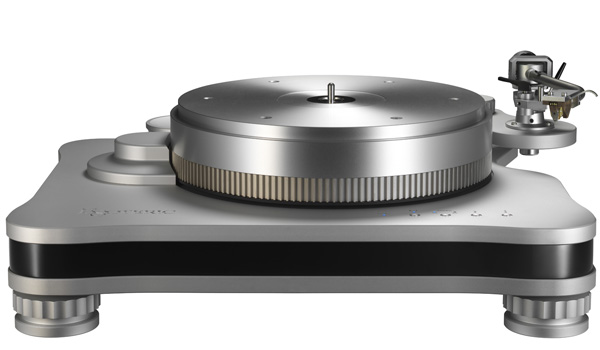

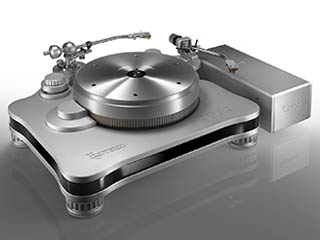

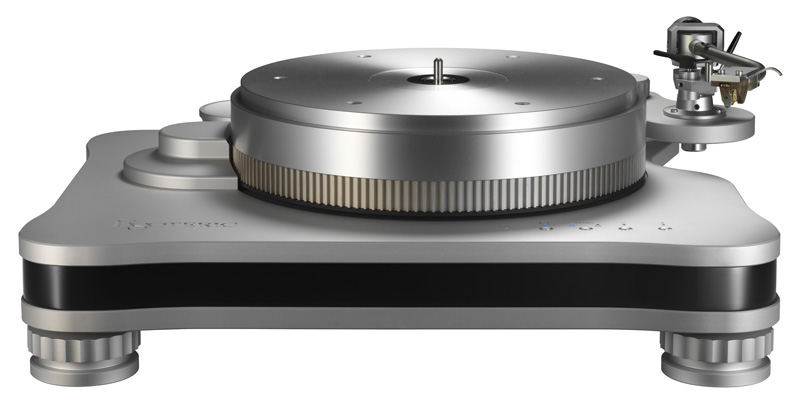

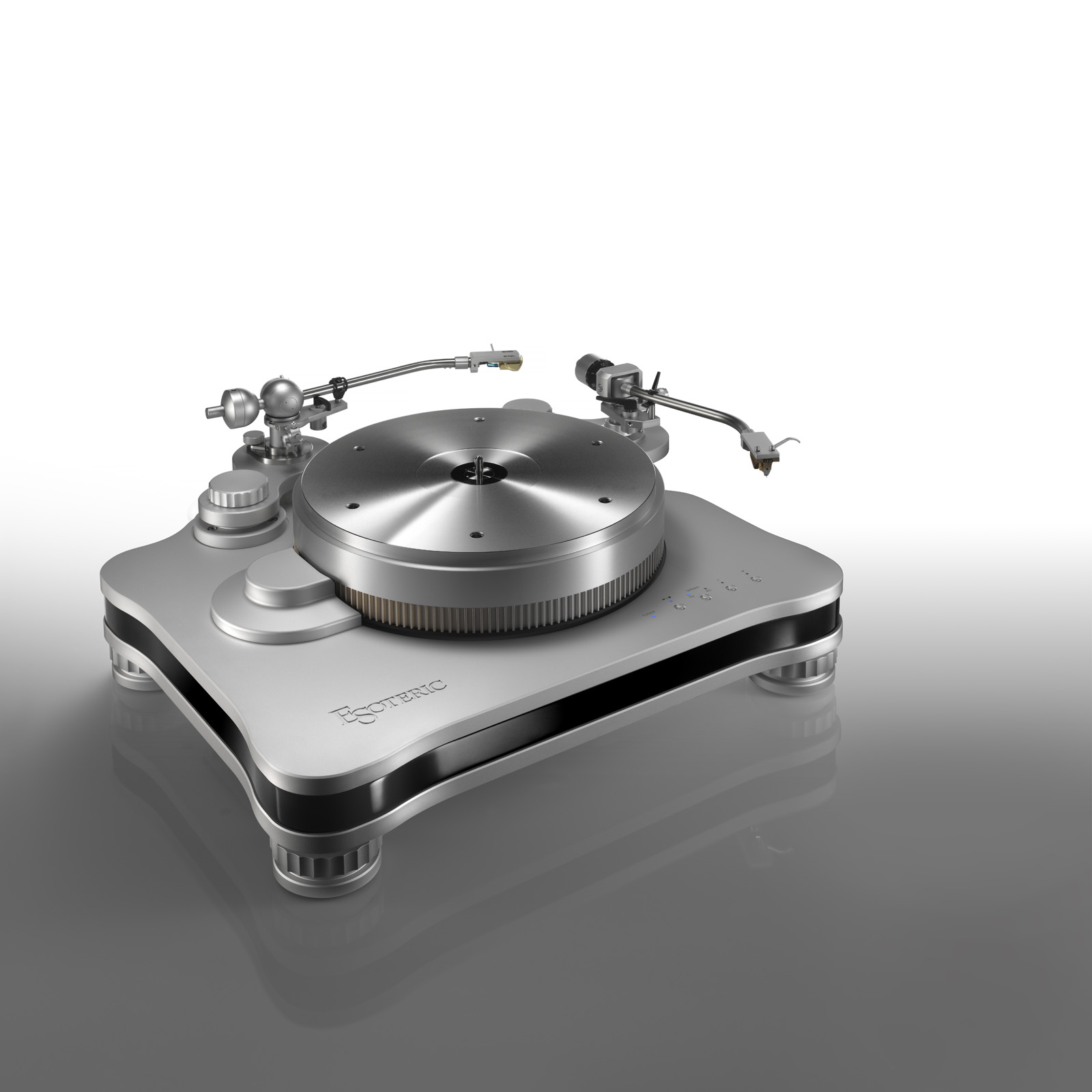

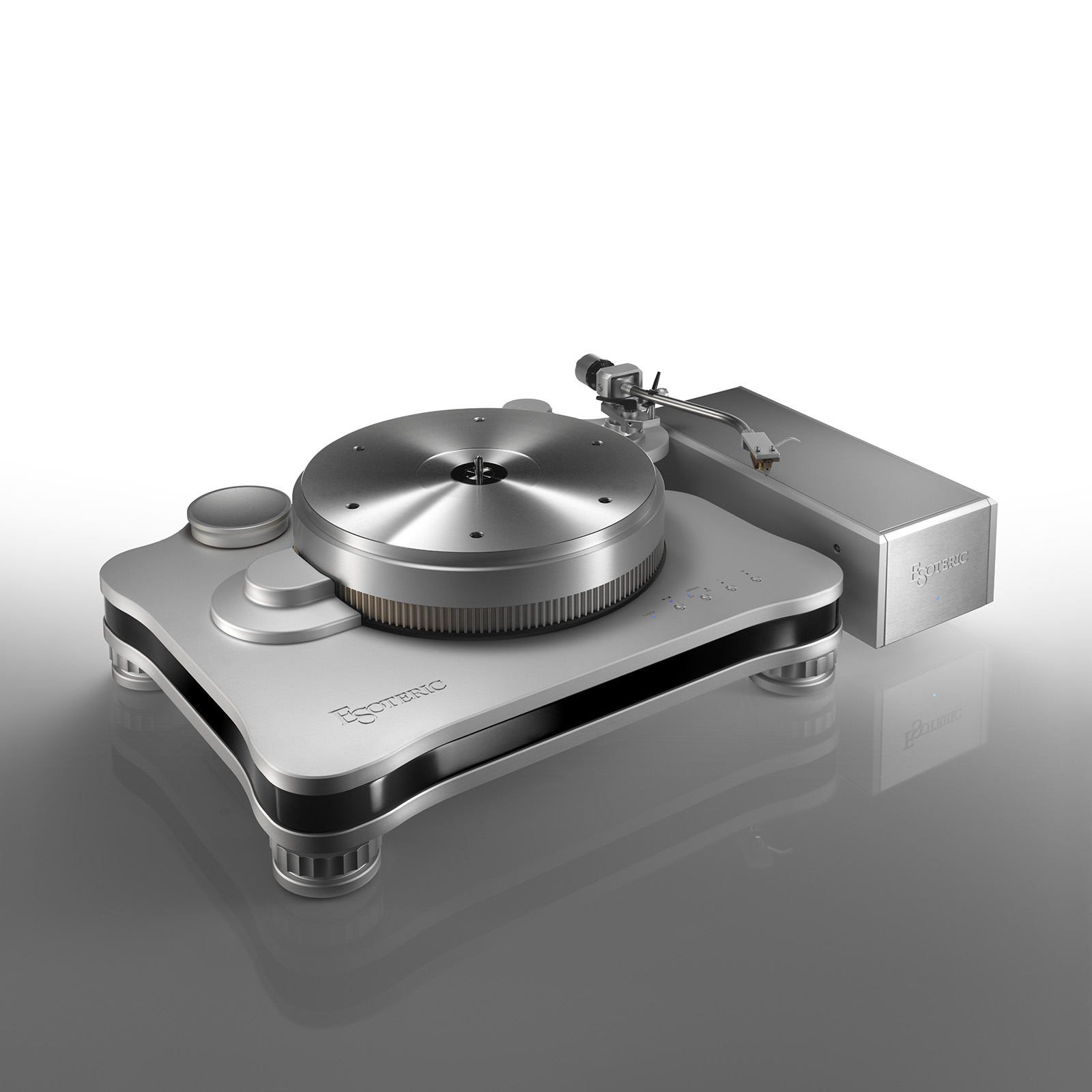

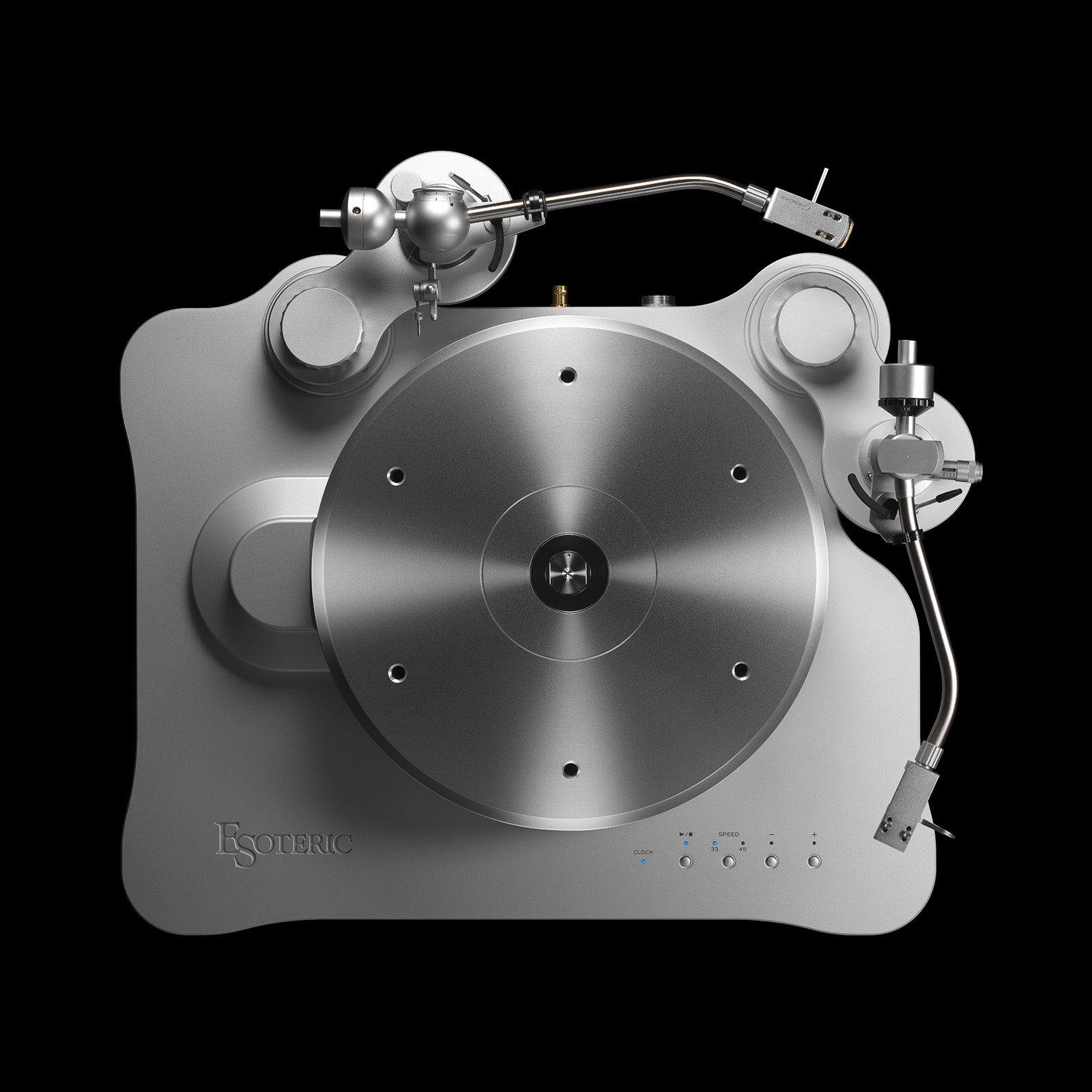

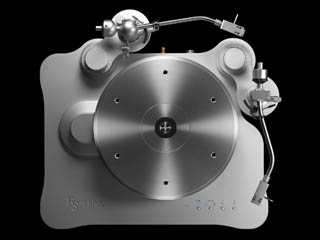

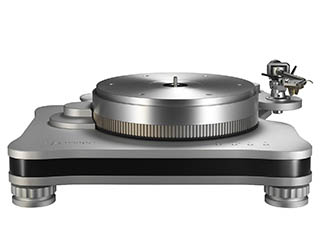

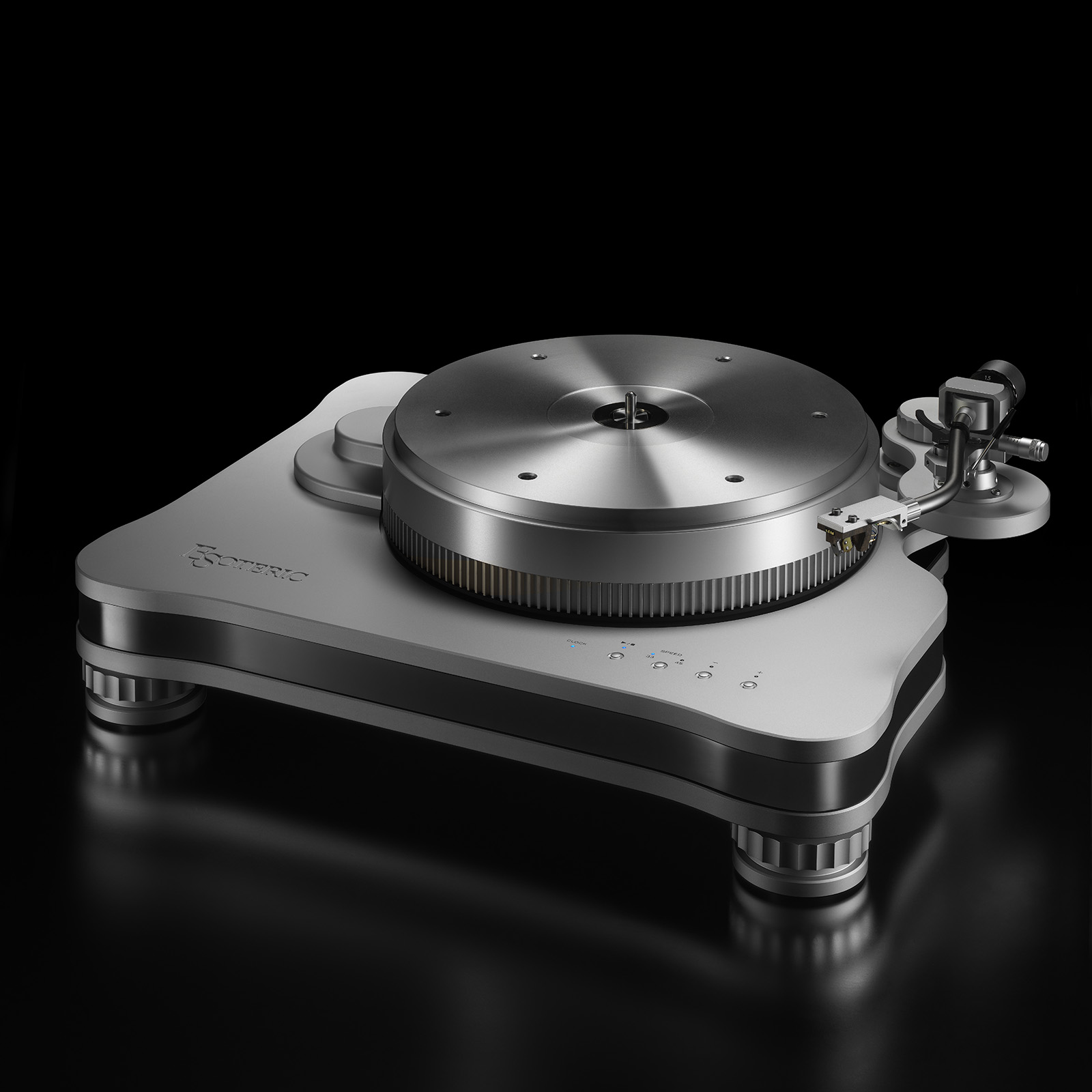

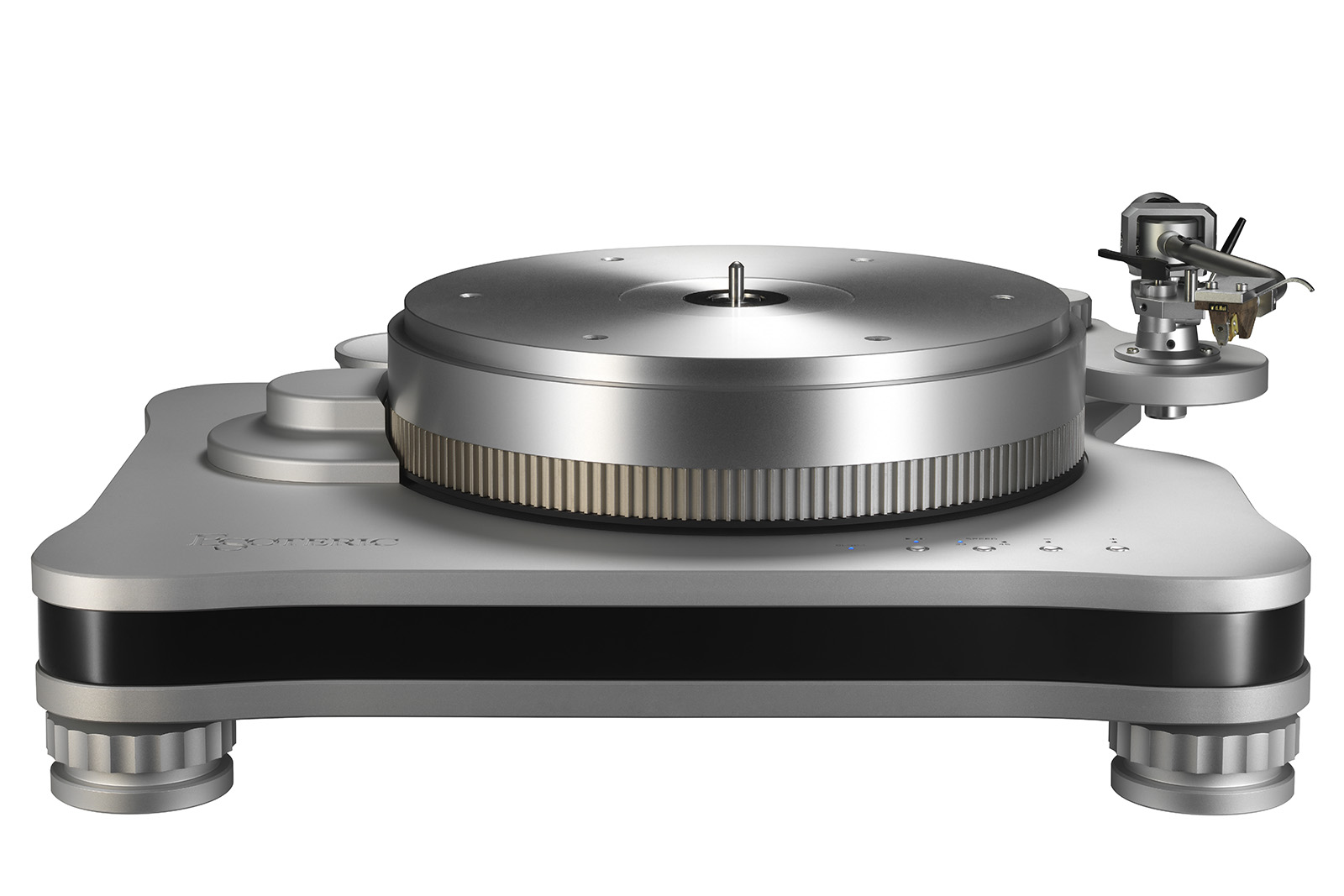

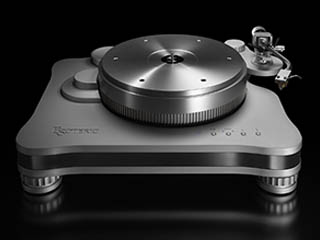

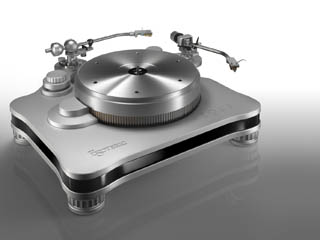

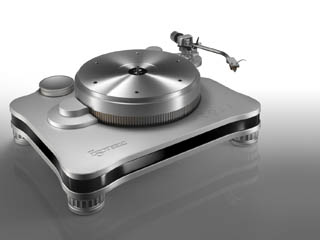

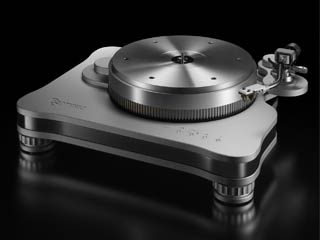

Main Unit

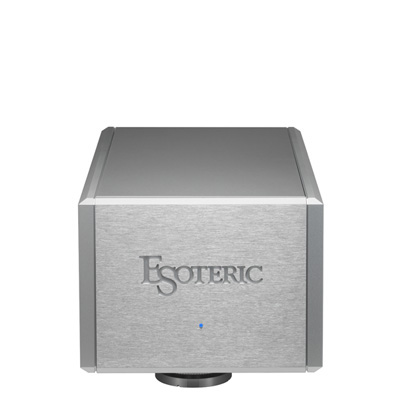

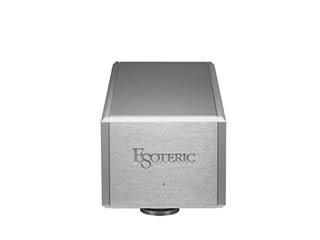

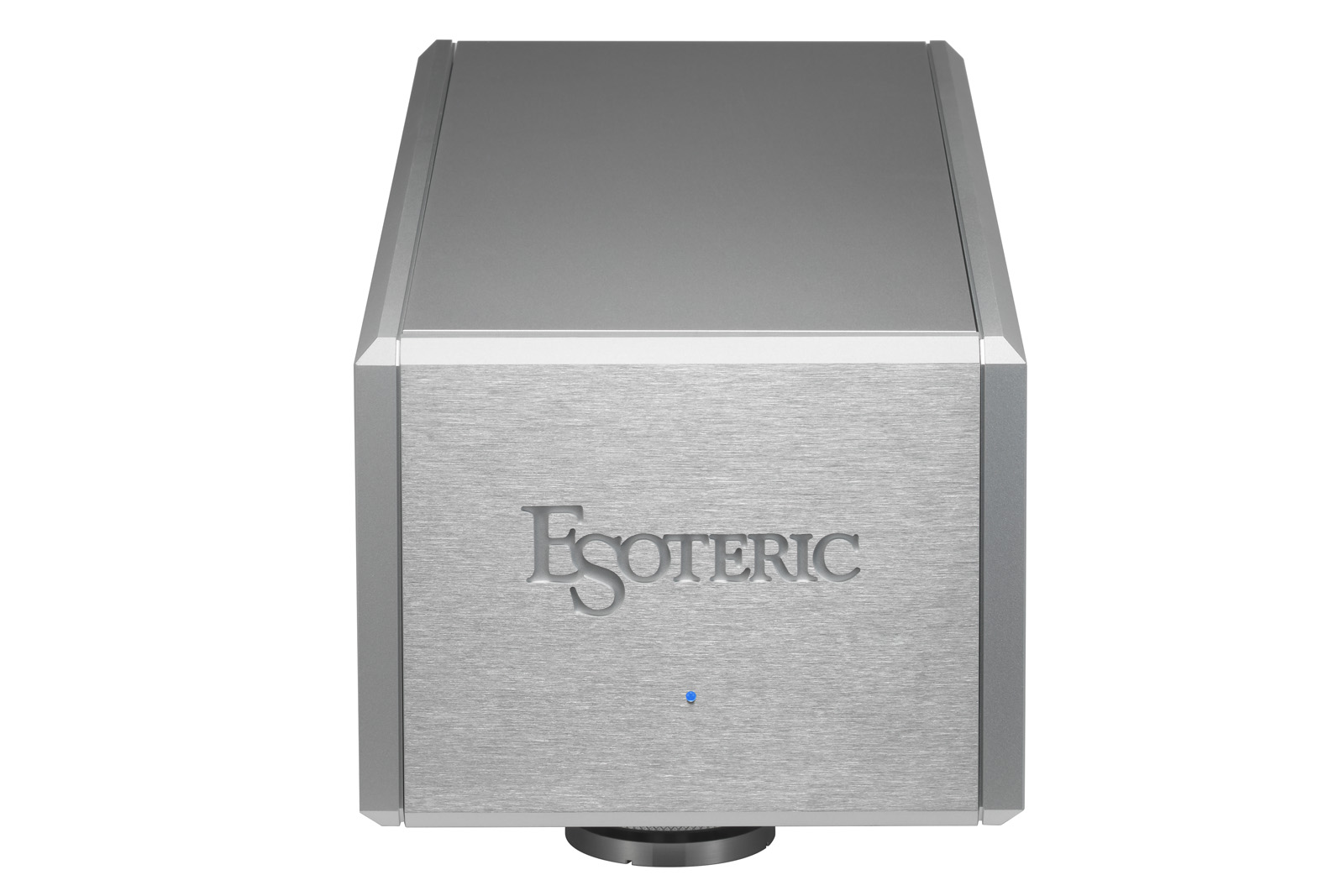

Power Supply Unit

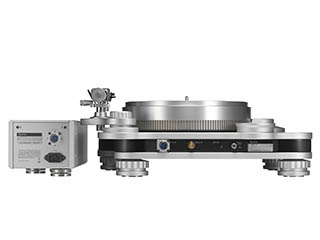

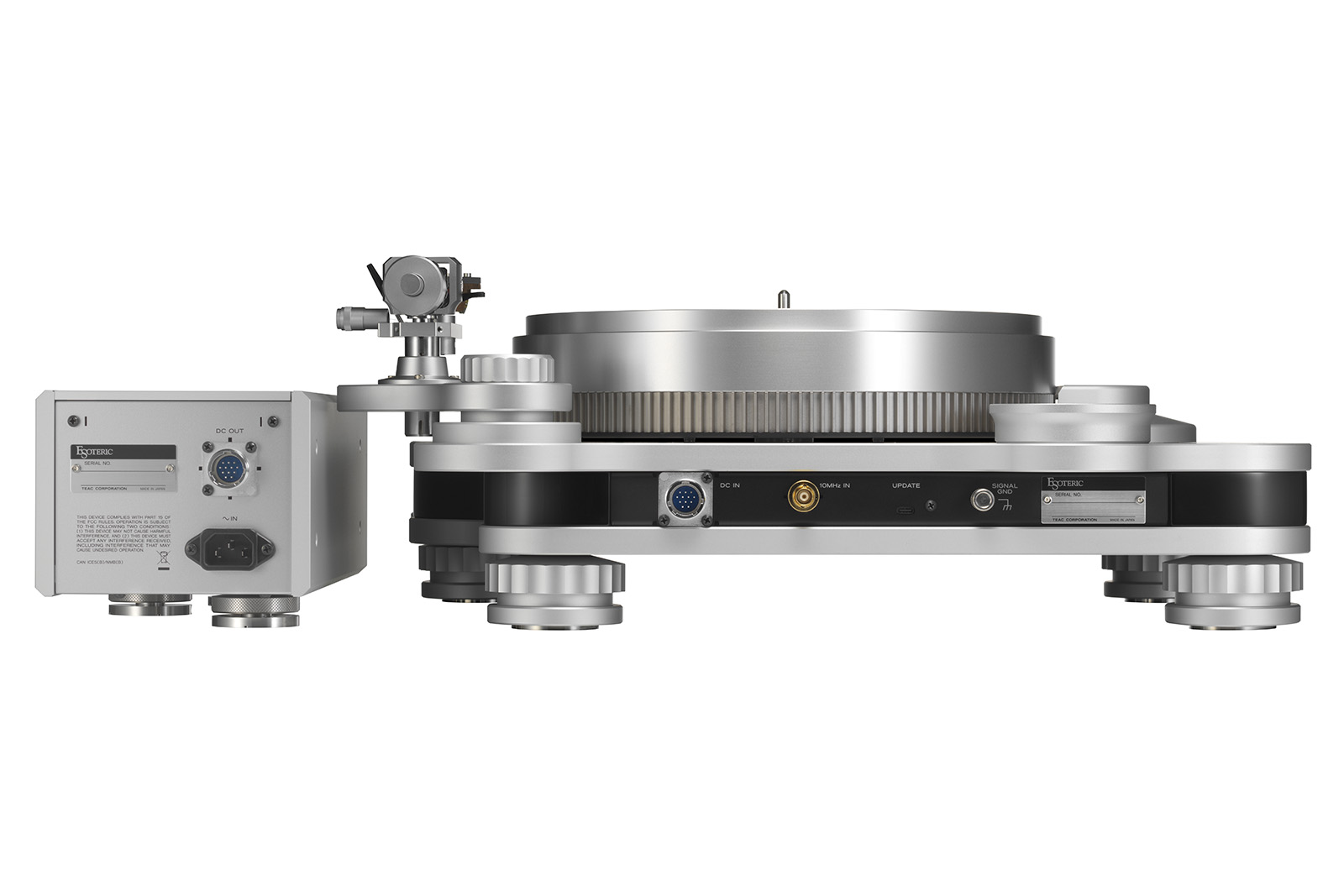

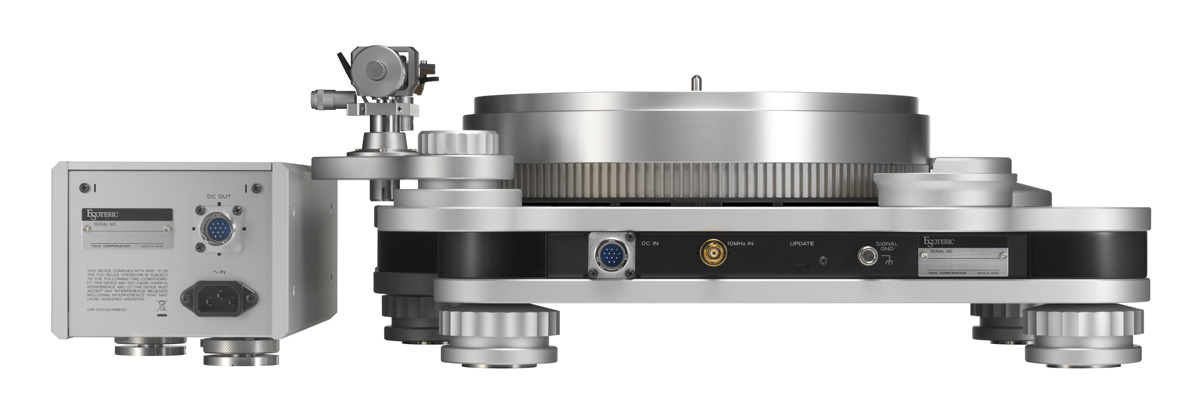

Rear

T-01 Key Features

“Esoteric MagneDrive System”: Revolutionary, patented (JP6501130) contact-free drive system.
High Torque: Provides superior pitch stability and dynamic bass performance.
Magne-Float Platter Technology: Reduces the platter’s effective mass from 13kg to approximately 4kg, minimizing spindle bearing friction.
MagneDrive Motor Integrated Chassis Design: Enables easier installation and improved usability.
Silent Motor Operation: Achieved through the “Vibration Absorber Case” construction.
High-End Separate-Units Design: Consisting of main unit and compact power supply unit for enhanced operational efficiency and sound isolation.
A High-Quality “Master Sound Discrete Clock” Motor Driver: Ensures exceptionally accurate platter rotation.
Clock Sync Compatibility: Supports 10MHz clock sync with the G-01XD/G-05 master clock for seamless integration.
Inverted Bearing System: Ensures smooth and stable platter rotation.
Triple-Layered Chassis: Combining aluminum and wood to effectively control vibration, with a mid-chassis finished in luxurious high-gloss piano lacquer.

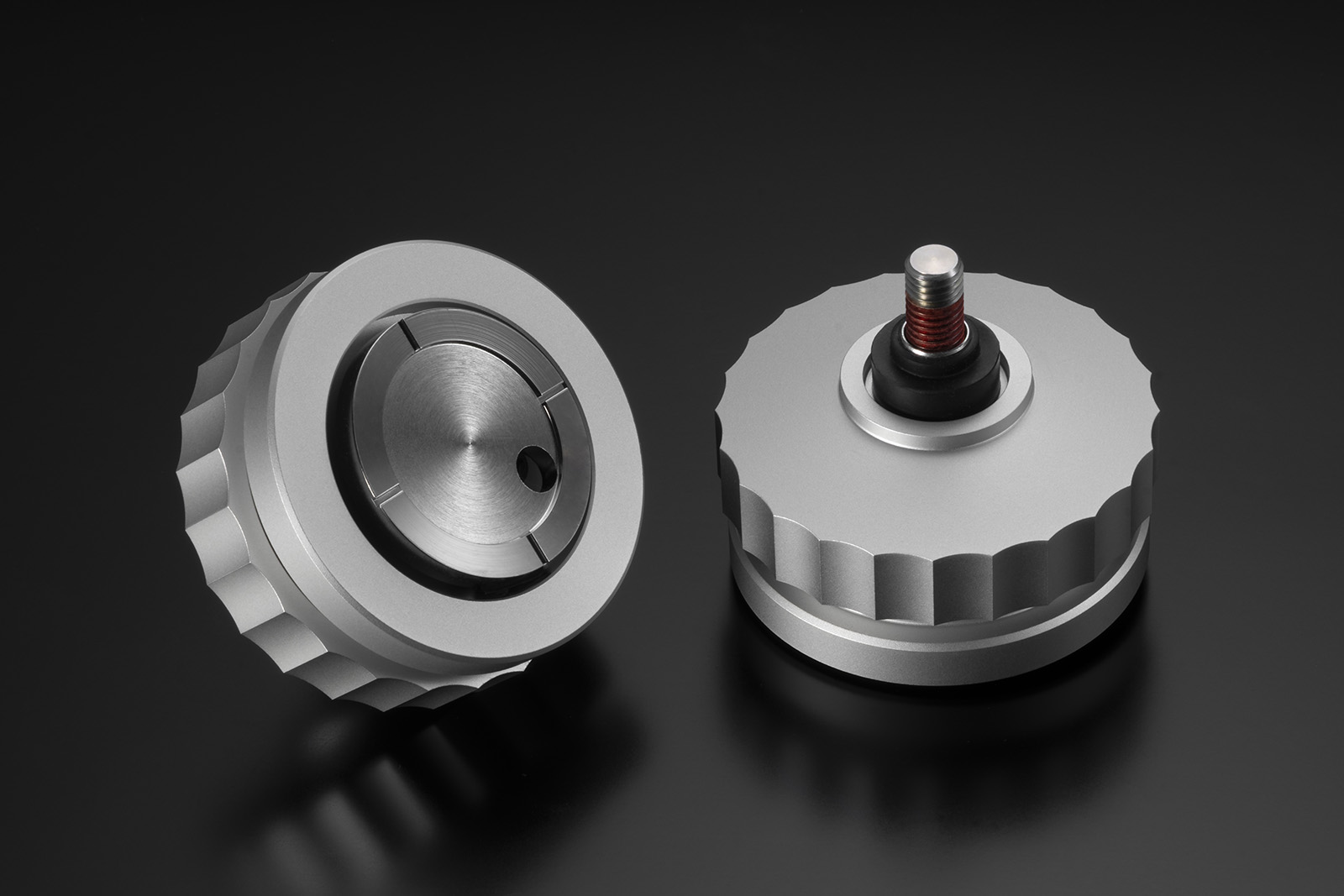

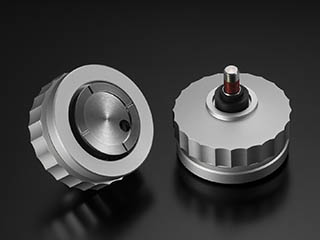

Specialized Isolation Feet: with a fully integrated design (spike + spike pad + damper), specialized for maximum vibration suppression and anti-feedback performance.

_{Japan Patent No. 6501130}

Technical Highlights

Silent, rumble free platter rotation.
High torque provides superior pitch stability and dynamic bass performance.
Precise platter rotation, free from any irregularities of speed.
No concern for the need of replacement belts.

The Esoteric MagneDrive System (Patent: JP6501130) is a non-contact, magnetically induced turntable drive system.
In order to achieve our goal of reproducing master-quality sound from a vinyl playback system, Esoteric devoted more than five years from the start of the project to the patent acquisition and commercialization of the MagneDrive system.

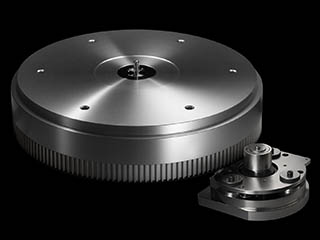

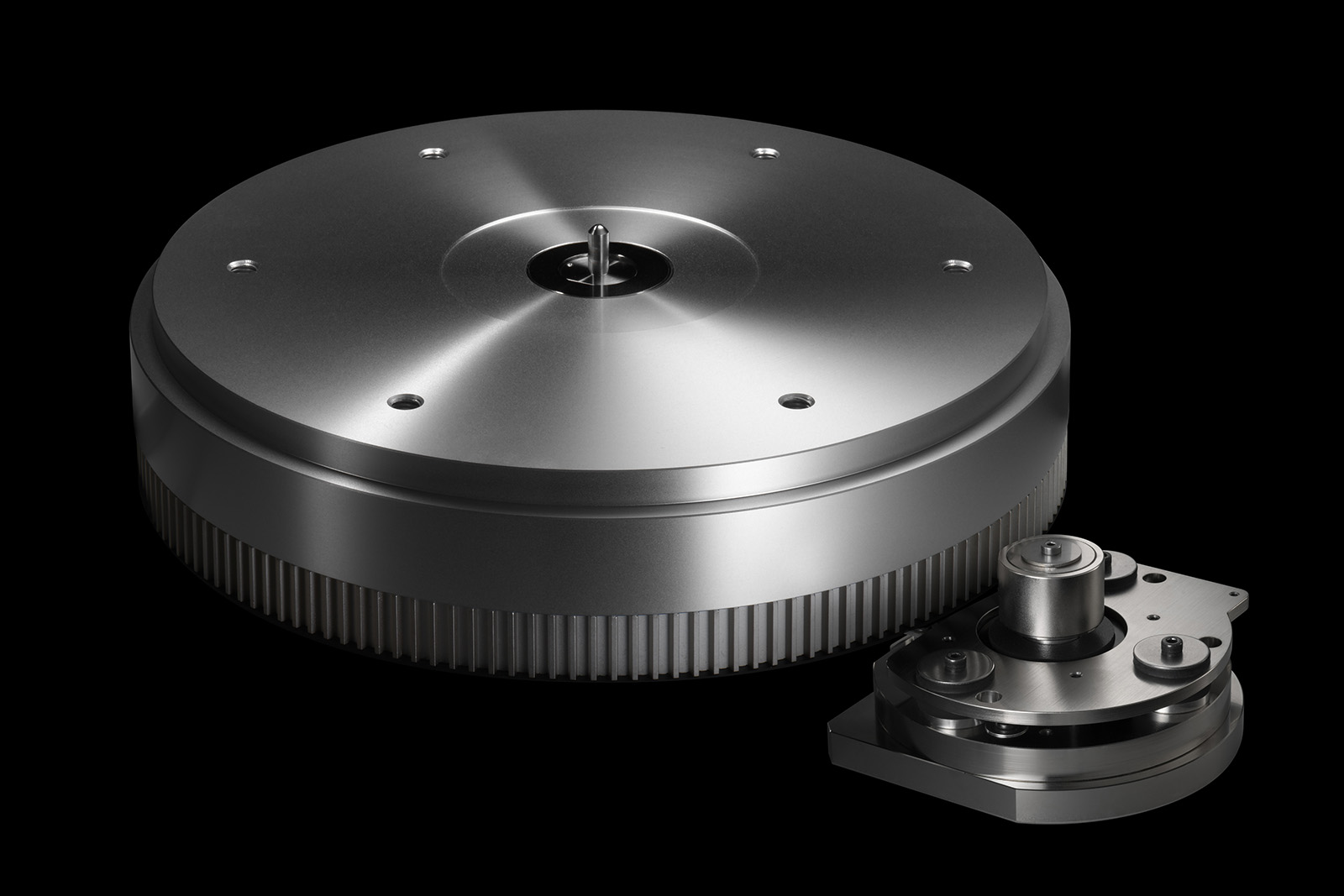

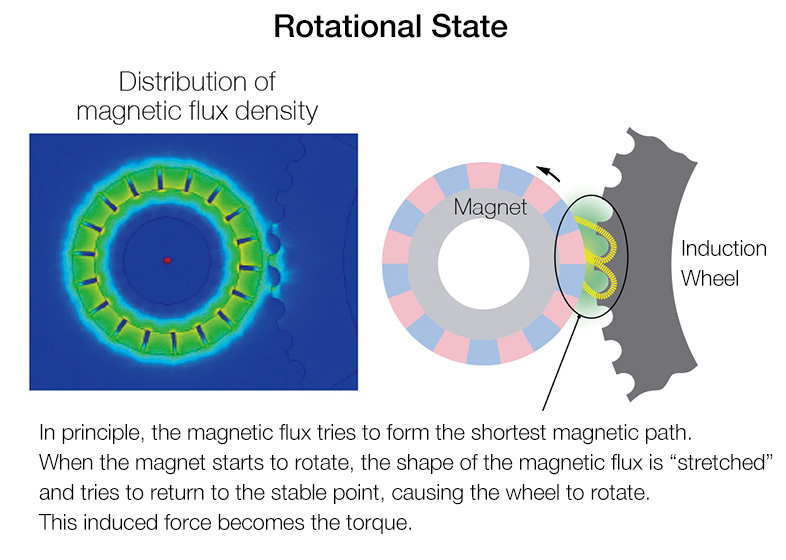

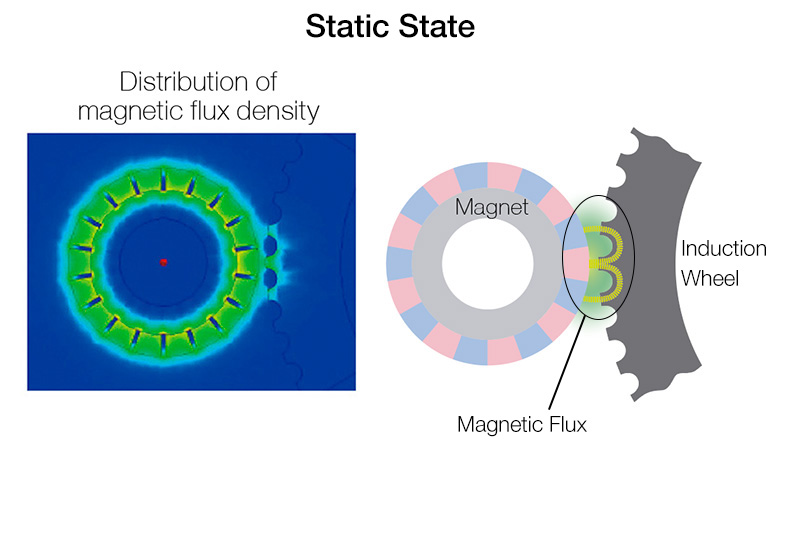

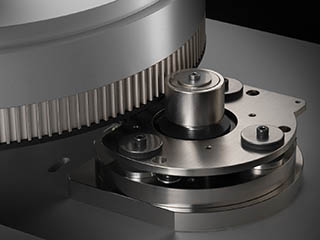

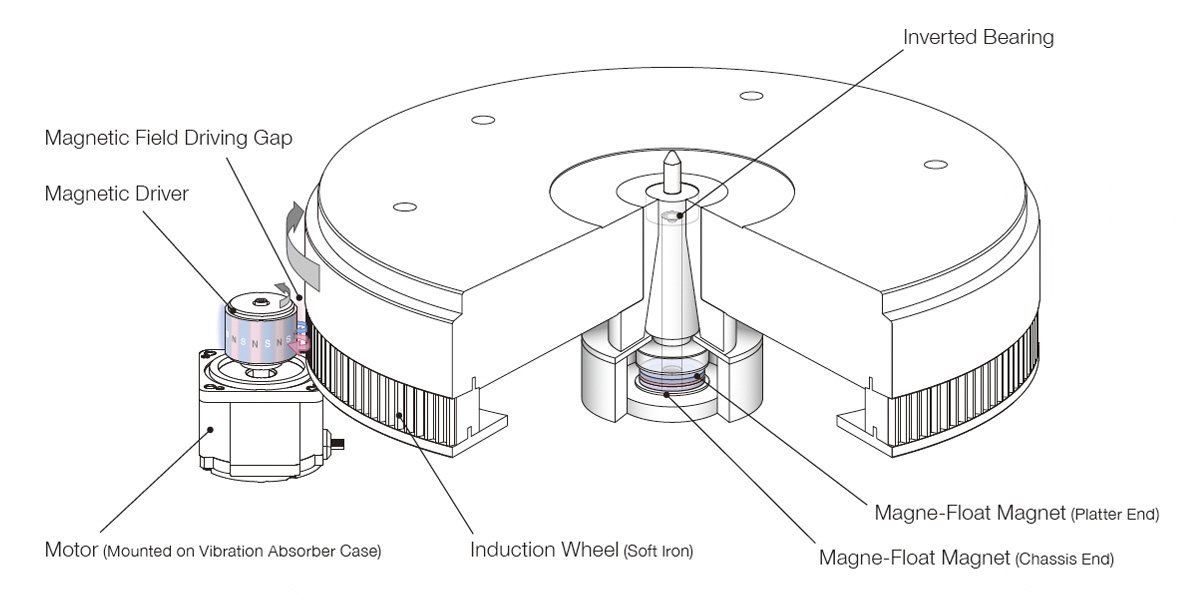

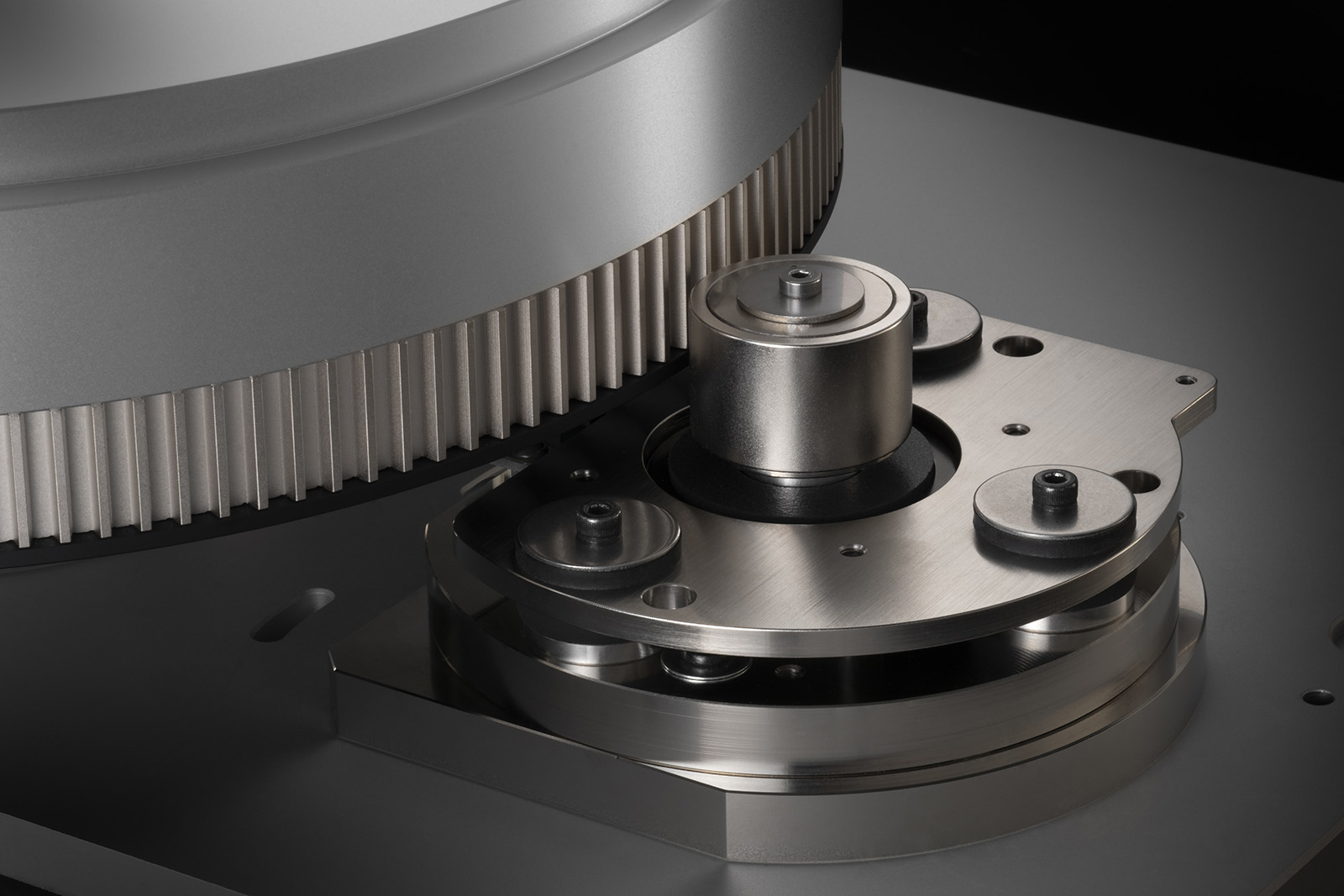

A “Magnetic Driver” is mounted on the top of the drive motor. The side of the Magnetic Driver is a dome-shaped magnet with alternating S and N poles. The platter is made of non-magnetic aluminum, but a soft iron “Induction Wheel” surrounds the lower part of the platter side, positioned in close proximity to the Magnetic Driver mounted on the motor assembly. As the Magnetic Driver rotates, the platter rotates synchronously with the induced magnetic force applied to the Induction Wheel. Because this induction mechanism operates without direct physical contact, the platter remains isolated from motor-borne vibration and rumble.

Specifications

Turntable

Rotation speed: 33 ⅓ rpm, 45 rpm
Rotation speed adjustment range: ±12.5% (in 0.1% increments)
Wow and flutters: 0.06% or less (W.R.M.S)

Clock input

BNC × 1
Input impedance: 50Ω
Frequencies that can be input (±10ppm): 10MHz
Input level: 0.5 to 1.0Vrms (sine wave)

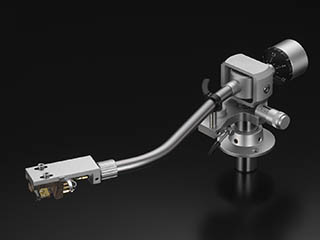

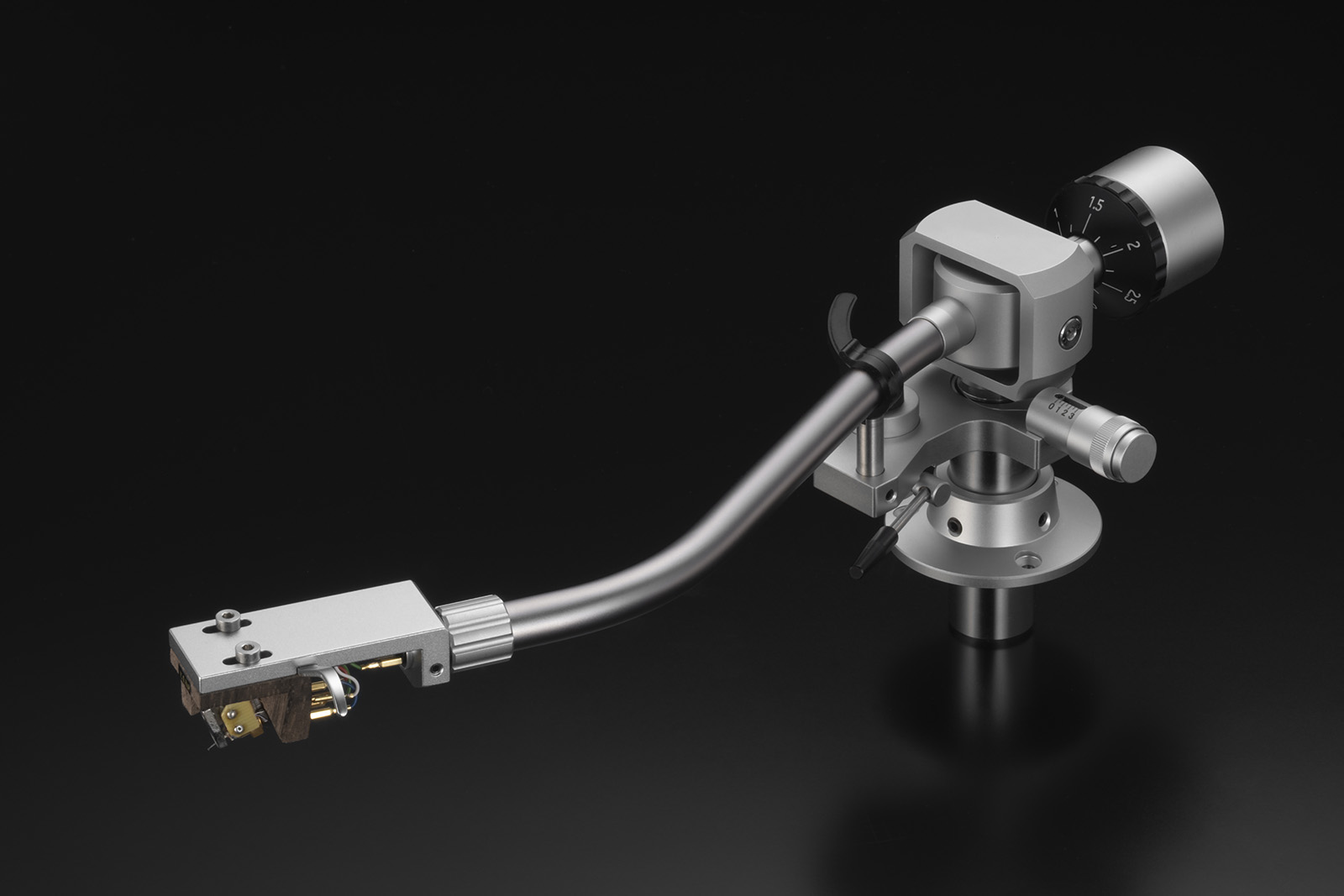

Tonearm (TA-9S)

Format: static-balanced
Total length: 309mm
Effective length: 232mm
Distance from bearing center to spindle center: 216mm
Overhang: 16mm
Offset angle: 22.5°
Tracking force range: 0 to 3g (with 0.25g steps)
Cartridge/shell balance range: 15 to 32g (including headshell)
Headshell weight: 17g

General

Power supply:
Model for Europe: AC220-230V, 50Hz
Model for USA/Canada: AC120V, 60Hz
Power consumption: 9W
Standby power consumption: 0.3W
External dimensions: (W×H×D, including protrusions):
539 × 206 × 432 mm / 21 ¼” × 8 ⅛” × 17 ⅛” (with tonearm installed)
517 × 185 × 432 mm / 20 ⅜” × 7 ⅜” × 17 ⅛” (without tonearm)
146 × 128 × 353 mm / 5 ¾” × 5 ⅛” × 14” (power supply unit)
Weight:
Main unit: 35 kg / 77 ⅜ lb (base unit: 22 kg / 48 ⅝ lb, platter: 13 kg / 28 ¾ lb)
Power supply unit: 7 kg / 15 ½ lb
